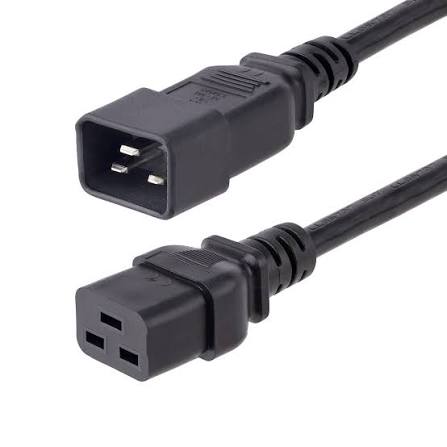

C19 to C20 Extension Cord – Ultimate Reliable Power Cable
C19 to C20 Extension Cord with IEC 53 (RVV) 300/500V cable and 3×1.5mm² conductors. A reliable heavy-duty power cable for servers, UPS and PDUs.

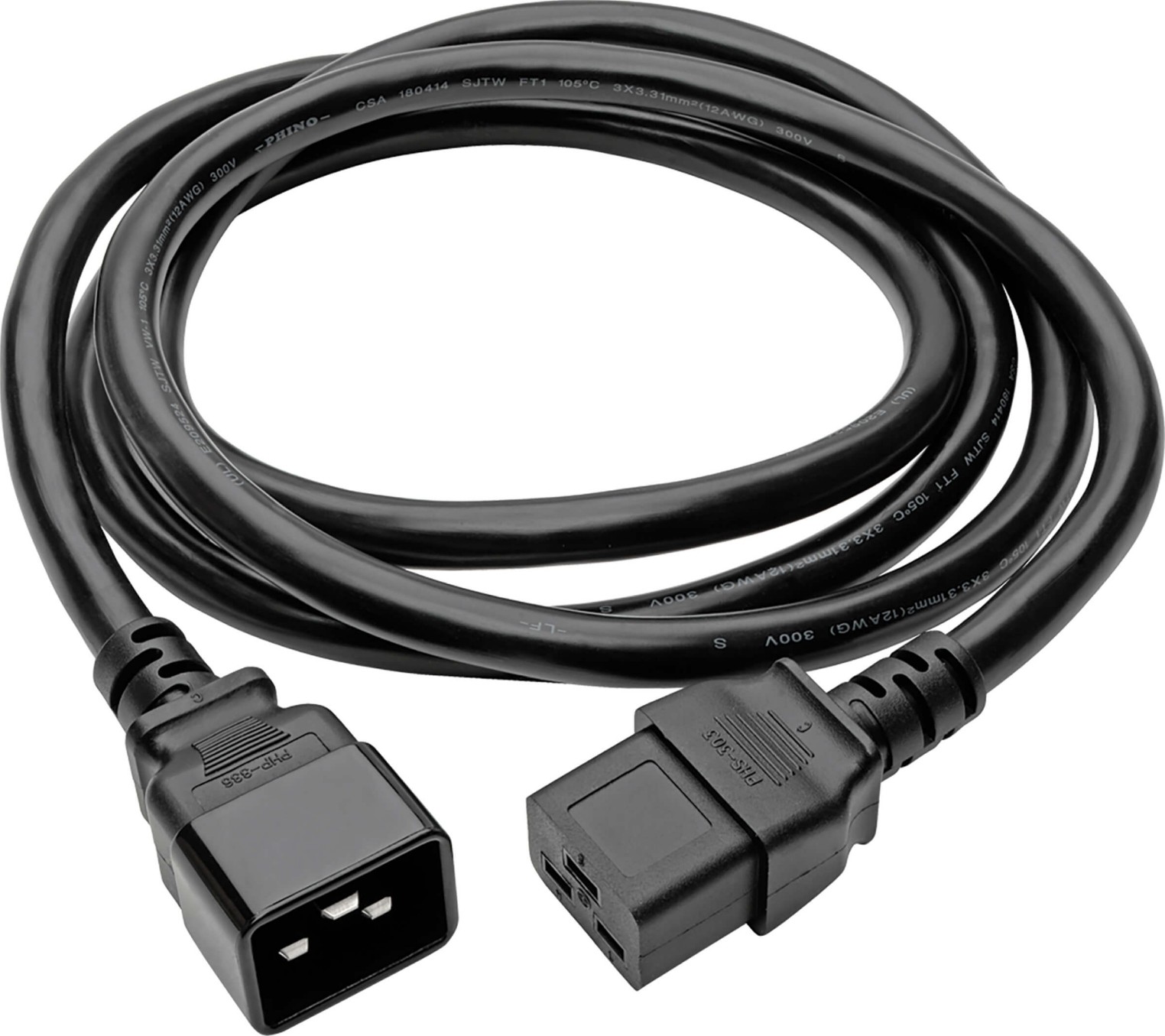

C19 to C20 Heavy Duty Extension Power Cord
C19 to C20 Extension Cord is a heavy-duty power extension cable designed for connecting compatible high-power IT equipment, power distribution units (PDUs), UPS systems, servers, and other professional electrical equipment. The cable is marked IEC 53 (RVV) 300/500V and uses 3 × 1.5 mm² conductors. Built for reliable power connectivity, it is suitable for data centers, server rooms, networking environments, and professional IT installations.
Specifications of C19 to C20 Extension Cord
Specification |
Details |
|---|---|
Product Type |
Heavy Duty Power Extension Cord |
Connector Type |
C19 to C20 |
Cable Type |
IEC 53 (RVV) |
Rated Voltage |
300/500V |
Conductor Configuration |
3 × 1.5 mm² |
Conductor Count |
3 Conductors |
Conductor Cross-Section |
1.5 mm² per conductor |
Applicable Standard |
GB/T 5023.5-2008 |
Certification Marking |
CCC |
Application |
Power Extension |
Compatibility |
Compatible equipment with corresponding C19/C20 IEC connectors |

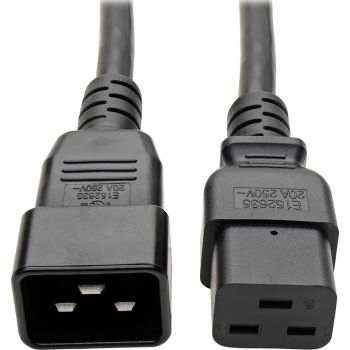

Connectivity Of C19 to C20 Extension Cord
Input
- IEC C20 Connector
Output
- IEC C19 Connector
What’s in the Box
- 1 × C19 to C20 Heavy Duty Extension Power Cord
FAQ
1. What is the C19 to C20 Extension Cord used for?
It is designed to extend power connections between compatible C19 and C20 IEC power connections.
2. What is the cable specification?
The cable is marked IEC 53 (RVV) 300/500V with a 3 × 1.5 mm² conductor configuration.
3. What is the rated voltage?
The cable marking indicates a rated voltage of 300/500V.
4. What standard is marked on the cable?
The cable is marked GB/T 5023.5-2008.
5. Where can this cable be used?
It can be used with compatible servers, UPS systems, PDUs, networking equipment, and other professional IT or electrical equipment.
