Planet POE-E201 PoE Extender Best 802.3at Gigabit Ethernet 1000Mbps Long Range Power Over Ethernet Repeater
Planet POE-E201 PoE Extender supports 802.3at PoE+ and Gigabit Ethernet 1000Mbps. Extend network power and data distance up to 500m for IP cameras, WiFi access points and PoE devices.

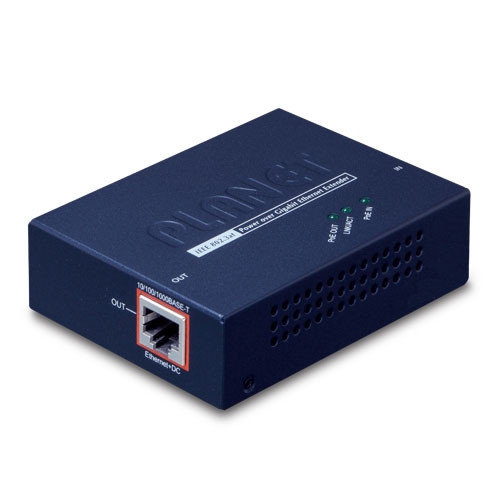

Planet POE-E201 802.3at PoE+ Gigabit Ethernet Extender
Planet POE-E201 is a Gigabit PoE+ Extender designed to extend both Ethernet data and PoE power beyond the standard 100-meter limitation. It receives power from a PoE switch or injector and extends the network connection up to 200m, 300m, 400m, and up to 500m using multiple units in daisy-chain mode. It is an ideal solution for extending power and network connectivity to IP cameras, wireless access points, and PoE devices without requiring an external power supply.
Key Features of Planet POE-E201 PoE Extender:
- IEEE 802.3at PoE+ and 802.3af PoE compliant
- Extends PoE network distance beyond 100 meters
- Supports up to 500m extension with multiple PoE extenders
- Gigabit Ethernet speed up to 1000Mbps
- Plug & Play installation
- No external power adapter required

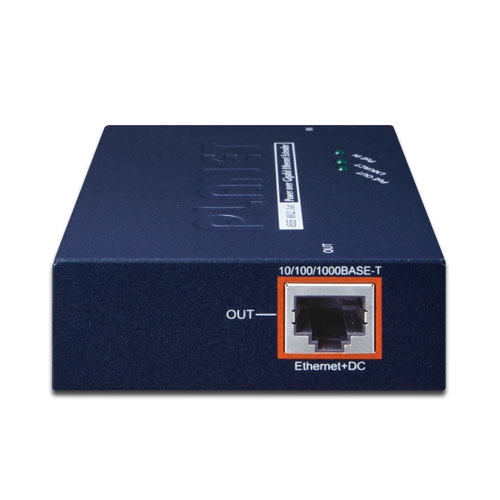

- 1 × PoE Input + 1 × PoE Output RJ45 port
- Supports IP cameras, WiFi access points, and VoIP phones
- Built-in PoE protection and stable power delivery
- Compact metal housing design
- Supports wall mounting and DIN rail installation
- Compatible with Cat5e/Cat6 Ethernet cabling
Specifications for Planet POE-E201 PoE Extender:
Specification |
Details |
|---|---|
Brand |
Planet |
Model |
POE-E201 |
Product Type |
PoE+ Extender / PoE Repeater |
PoE Standard |
IEEE 802.3at PoE+ / IEEE 802.3af PoE |
PoE Type |
End-Span (Type A) |
Data Rate |
10/100/1000Mbps Gigabit Ethernet |
Network Interface |
RJ45 Ethernet |
Input Port |
1 × 10/100/1000BASE-T RJ45 PoE IN |
Output Port |
1 × 10/100/1000BASE-T RJ45 PoE OUT |
Port Speed |
Gigabit 1000Mbps |
PoE Input Voltage |
48–56V DC |
PoE Input Power |
Maximum 30.8W |
PoE Output Power |
Maximum 26W |
Power Consumption |
Maximum 2.6W |
Extension Distance |
Additional 100 meters per unit |
Maximum Distance |
Up to 500 meters with multiple units |
Installation Type |
Plug & Play |
External Power Adapter |
Not Required |
Cable Support |
Cat5 / Cat5e / Cat6 / Cat6A UTP/STP |
Transmission Medium |
Copper Ethernet Cable |
Fiber Support |
Not Supported |
Single Mode Fiber |
Not Applicable |
Multimode Fiber |
Not Applicable |
Fiber Port |
No Fiber Port Available |
Network Standard |
IEEE 802.3 / 802.3u / 802.3ab |
Connector Type |
RJ45 |

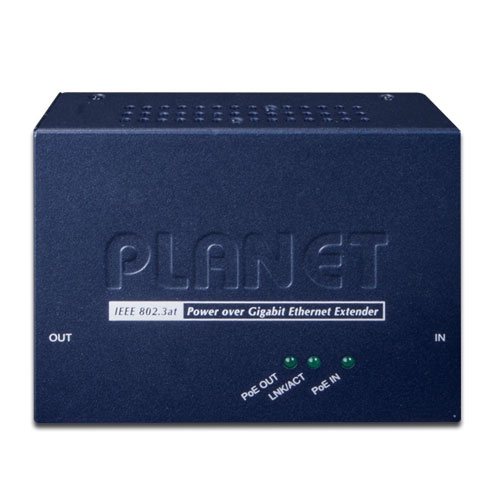

LED Indicators |
PoE IN / LAN / PoE OUT Status |
Protection |
Surge & ESD Protection |
Mounting |
Wall Mount / DIN Rail |
Housing Material |
Metal |
Operating Temperature |
-10°C to 60°C |
Storage Temperature |
-40°C to 85°C |
Dimensions |
94 × 70.3 × 26.2 mm |
Weight |
Approx. 189g |
Applications |
IP Camera, Wireless AP, IP Phone, PoE Network Devices |
Connectivity:
PoE Switch / PoE Injector
⬇
POE-E201 PoE IN Port
⬇
Long Ethernet Cable (Cat5e/Cat6)
⬇
POE-E201 PoE OUT Port
⬇
PoE Device (Camera / Access Point / IP Phone)
In The Box:
- Planet POE-E201 PoE+ Extender
- User Documentation
